What is the typical viscosity range for a dual planetary mixer?

What is the typical viscosity range for a dual planetary mixer?

The viscosity processing range of a dual planetary mixer is usually between 50-4500000 cP, with specific upper limits depending on equipment configuration, mixing blade design, and drive system. Most industrial grade models can stably process materials with viscosity below 1000000 cP, while high-end or customized equipment (such as those with forced dispersion systems) can support high viscosity systems up to 3000000 cP or even higher.

Typical application scenarios in the industry

In the field of new energy, the preparation of electrode slurries for lithium and sodium batteries requires high uniformity and batch stability.

Electronic materials: a mixture of conductive silver paste, chip packaging adhesive, and 3D printing consumables.

Chemical and Adhesive: Production of high viscosity systems such as organic silicone, epoxy resin, polyurethane, etc.

Food and cosmetics: homogenization of chocolate paste, toothpaste, face cream and other creams.

Research and Laboratory: Small batch formula testing, supporting process validation and parameter optimization.

1、 Typical viscosity range layering instructions

Conventional application range: 10000-1000000 cP

Most standard dual planetary mixers are suitable for this range and are widely used in the production of lithium battery slurries, cosmetic pastes, sealants, etc. For example, Pengyi intelligent devices are specifically optimized for this viscosity range, achieving efficient mixing through the synergy of planetary stirring and high-speed dispersion discs.

High viscosity reinforced type: ≤ 3000000 cP

Some models equipped with reinforced transmission systems and multi-stage dispersed structures can handle materials with higher viscosity. The experimental power mixer of Anhui Baomian Intelligent Equipment clearly indicates that the material viscosity can reach ≤ 3 million CPS, and is suitable for extremely viscous systems such as silicone and high filling adhesives.

Extreme high viscosity treatment: up to 4500000 cP

Specially designed dual planetary mixers (such as those with bottom scraping function and double frame mixing blades) can cover a wider range and meet scientific research or special chemical needs.

2、 Key factors affecting viscosity adaptability

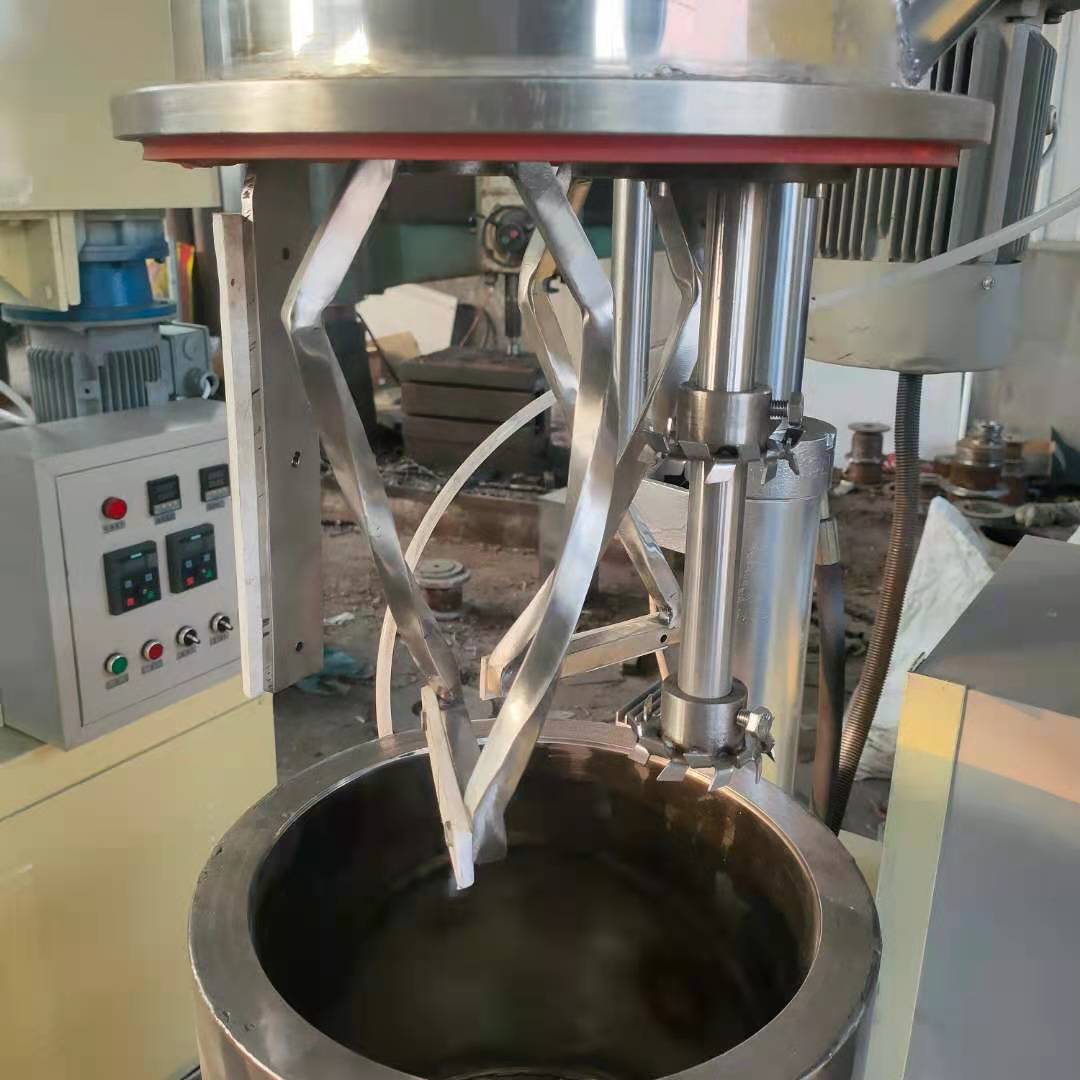

Stirring paddle structure: Fried Dough Twists frame or double frame paddle with scraper design can effectively turn over materials, prevent local accumulation, and improve the mixing efficiency of high viscosity system.

Drive power and speed regulation: High viscosity materials require a larger motor power (such as 1.23kW or more) and a variable frequency speed regulation system to achieve flexible switching between low-speed kneading and high-speed shearing.

Temperature control and sealing: For high viscosity materials that are sensitive to heat or prone to oxidation, jacket temperature control (-20-300 ℃) and vacuum operation (≤ -0.098MPa) can help maintain material stability.
