SM260
Longjun

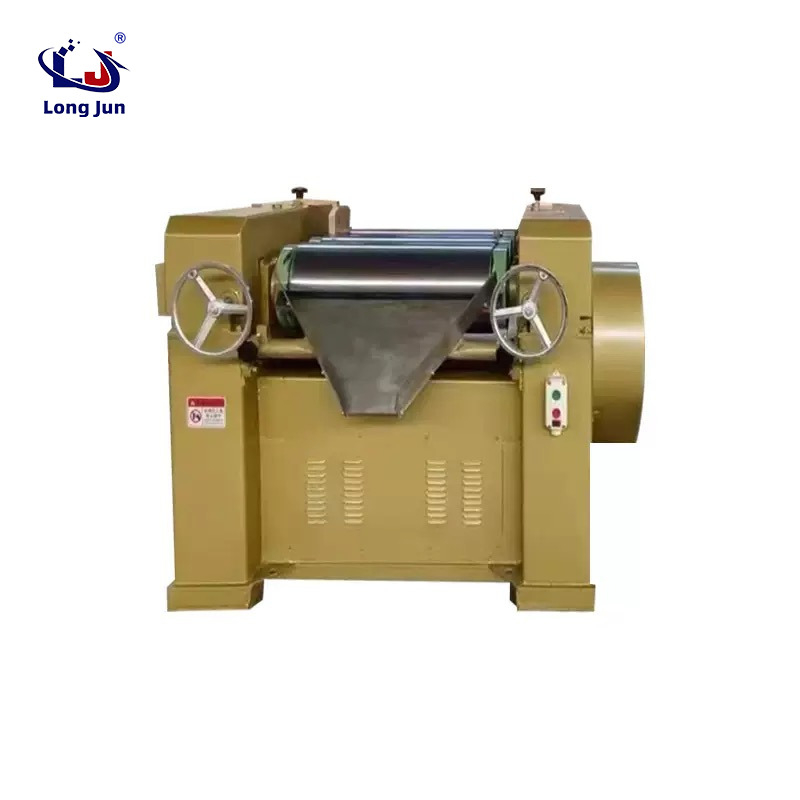

The three roll grinder is the most effective equipment for grinding and dispersing high viscosity materials. The three roll machine is mainly used for grinding various liquid slurries and paste materials such as paints, inks, pigments, plastics, cosmetics, soap, ceramics, rubber, etc. It is particularly suitable for grinding products with high dispersion viscosity and fine particle size requirements, as well as materials that are difficult to circulate or not resistant to circulation in sand mills. The SM405, SM315, and SM260 three roll grinders are used for mass production, while the SM160, SM120, and SM65 three roll grinders are used for small batches or laboratory use.
Working principle of three roll grinder:
The three roll grinder achieves grinding effect by squeezing and rubbing the surfaces of three horizontal rollers at different speeds.
1. The roller material of the three roll grinder is centrifugally cast from cold hard alloy cast iron, with a surface hardness of HS70 or above. It is a high-strength and wear-resistant grinding machine, with strong toughness that is not affected by external pressure and temperature on the roller properties.
2. The roller diameter undergoes high-precision grinding, which is precise and delicate, and can achieve a grinding fineness of less than 5um for materials, producing uniform and delicate high-quality products.
3. The transmission system of the three roll grinder adopts a multi row chain wheel soft start, with high transmission efficiency, smooth operation, no noise, and a parallel handwheel screw to adjust the roller distance, which is simple, accurate, and easy to operate
4. Adjusting the particle size of the ground material by adjusting the gap between the rollers through the parallel handwheel screw is simple, accurate, and easy to operate.
5. The three roll grinder is equipped with a cooling device that can dissipate the heat generated during the operation of the rollers, ensuring continuous operation; Suitable for multiple varieties and easy to change colors.
Three roller grinding mill technical parameter：
