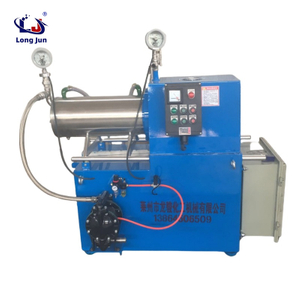

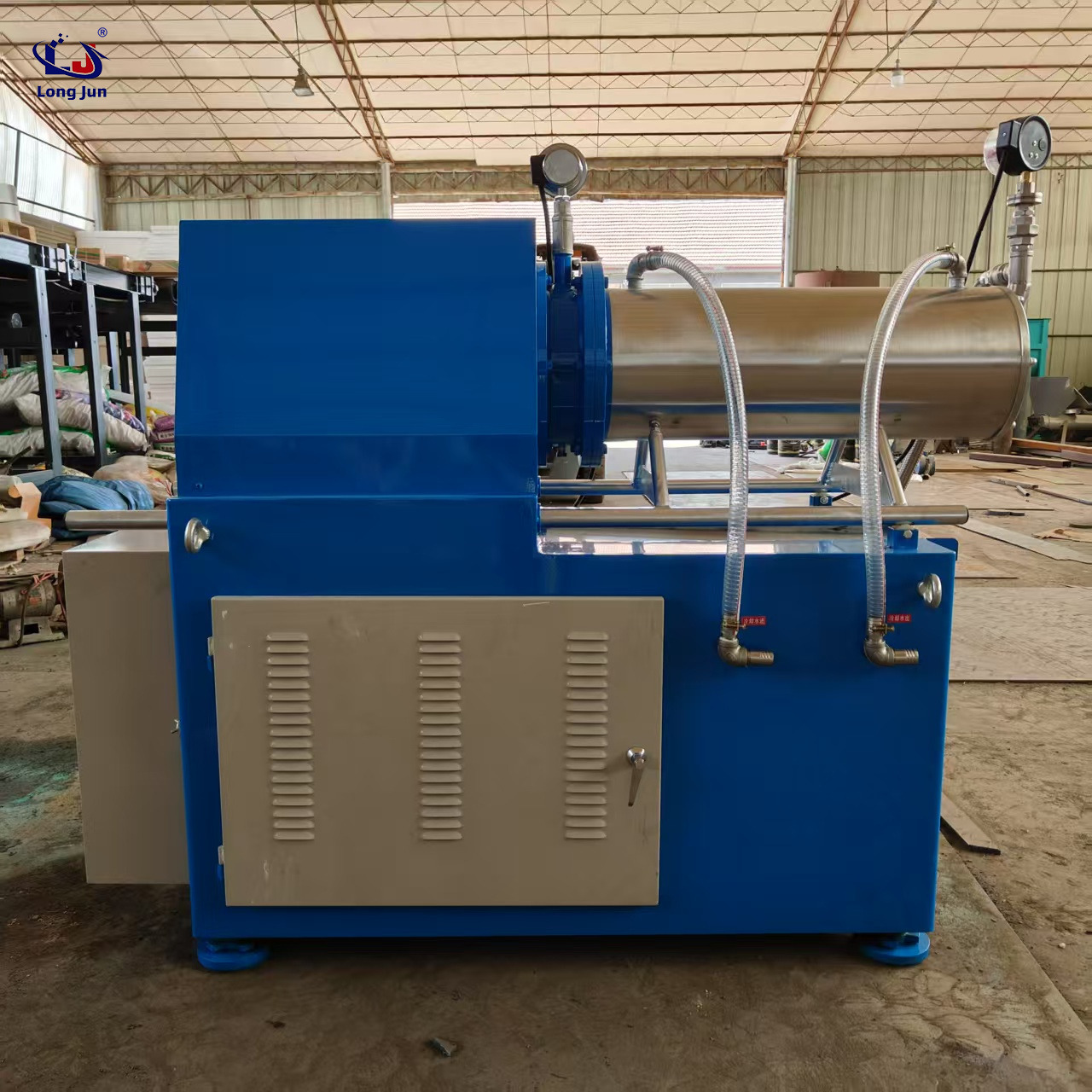

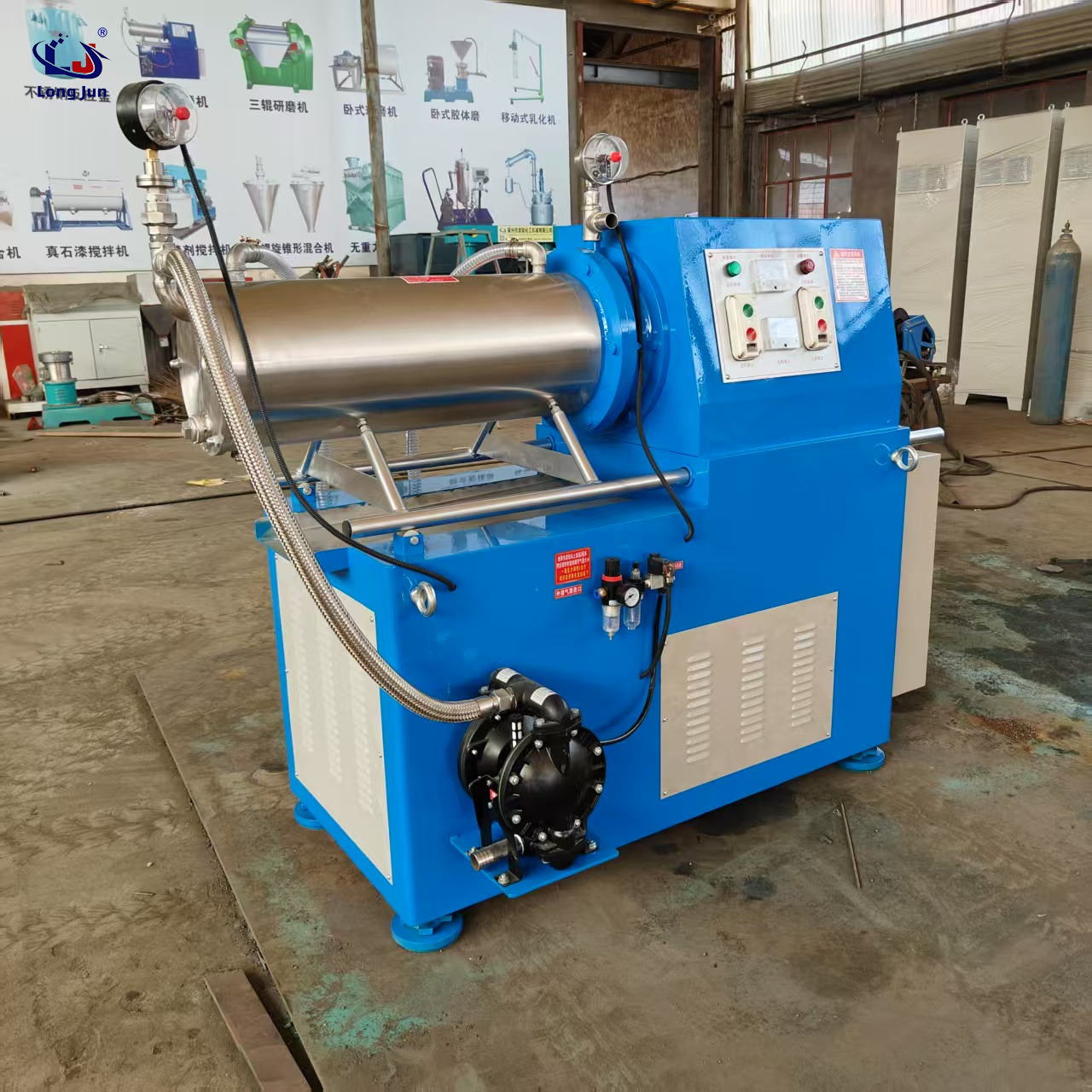

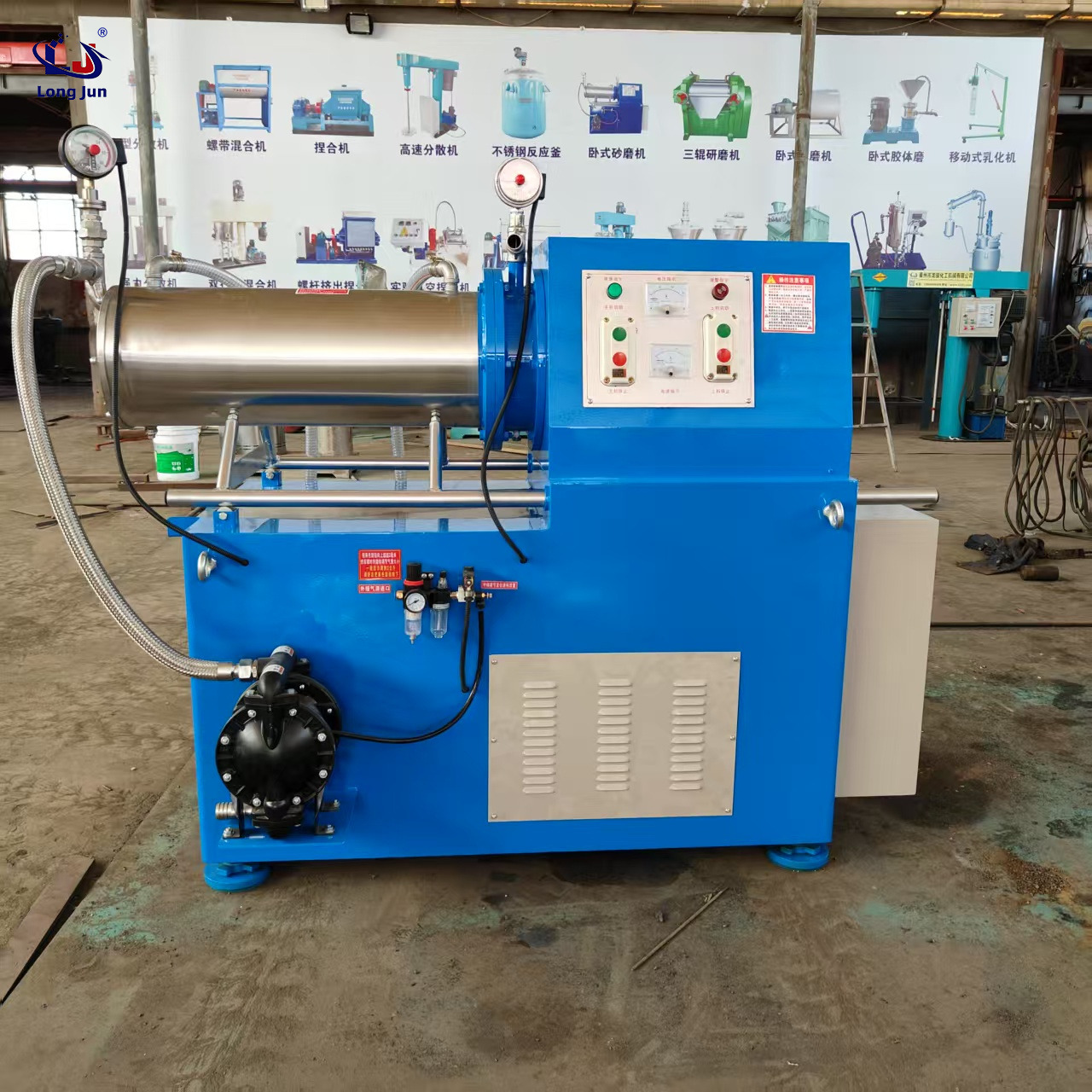

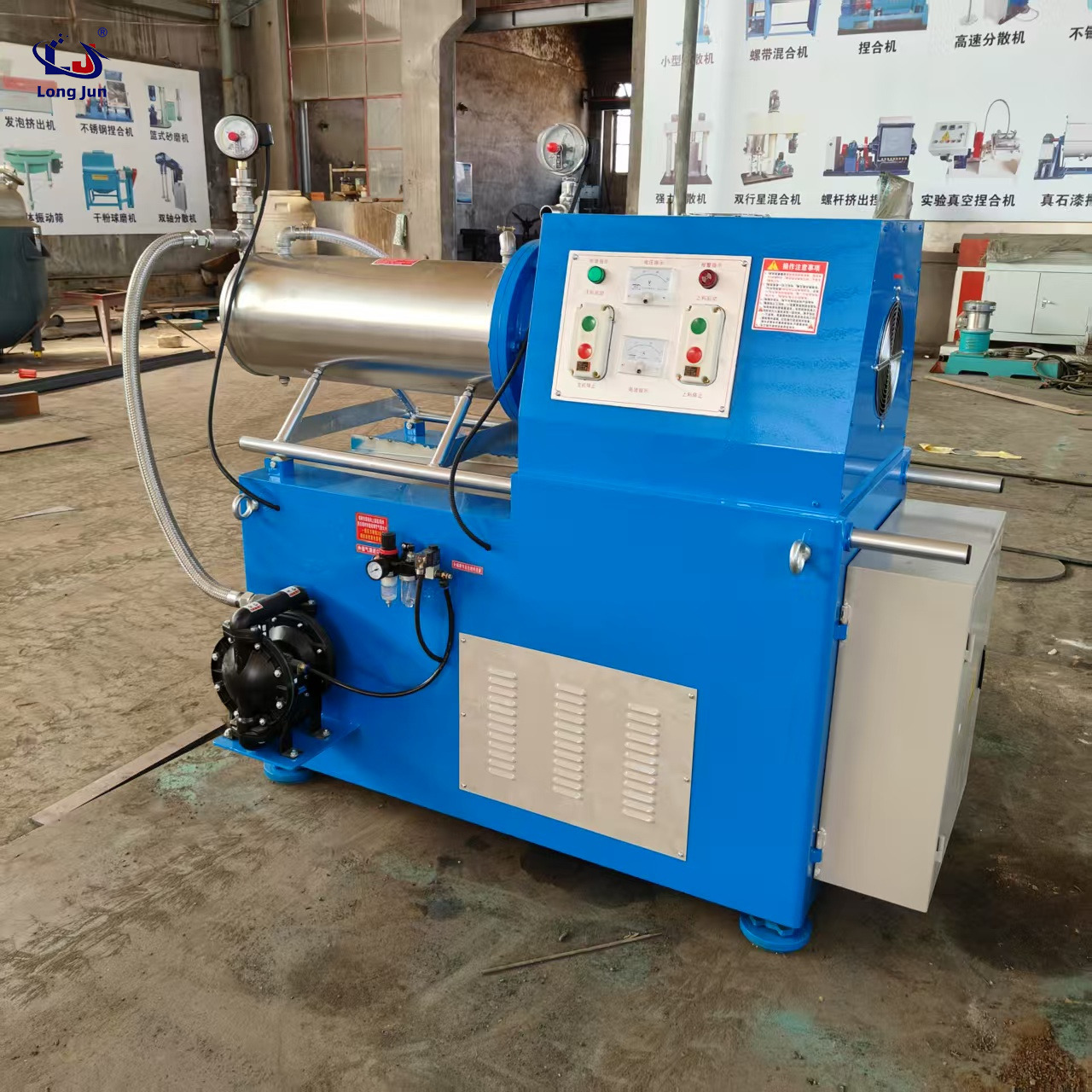

Horizontal sand mill

Product Overview

• Engineered for continuous, high-capacity wet grinding and particle dispersion.

• Sourced directly from a premier manufacturer to ensure industrial-grade reliability.

• Flawlessly processes high-viscosity substances without requiring complex manual interventions.

• A trusted supplier solution designed to elevate overall facility output and consistency.

Product Description

The horizontal sand mill represents a pinnacle in industrial dispersion technology, transforming raw, pre-mixed materials into seamlessly uniform, ultrafine particles. As the material enters the robust grinding chamber, it is met with a precisely calibrated volume of grinding media, such as premium glass or zirconia beads. Driven by high-velocity dispersing blades, these beads ignite into a kinetic storm, colliding with suspended particles to generate an intense, relentless shear force. This mechanical symphony breaks down agglomerates with absolute precision, resulting in a remarkably smooth, flawless texture that you can instantly feel in the final slurry. Unlike conventional three-roll mills that demand meticulous manual adjustments and seasoned expertise, this advanced machinery operates with intuitive fluidity, allowing for continuous, large-scale production without compromising on quality. The heavy-duty horizontal architecture ensures a stable, vibration-dampened operation, emitting a steady, reassuring hum that signifies peak industrial efficiency. By seamlessly handling high-viscosity substances and integrating a specialized separation device, the mill effortlessly isolates the refined product from the grinding media. This results in a pristine, contaminant-free output that elevates the standard of your coatings, inks, pharmaceuticals, and cosmetics, ultimately driving down operational costs while maximizing yield and consistency.

Product Specifications

Key Features & Highlights

Engineered to redefine your production capabilities, this horizontal sand mill combines robust structural integrity with cutting-edge dispersion dynamics. It is meticulously crafted to solve the most demanding processing challenges, ensuring your operations remain uninterrupted and your final products achieve unparalleled refinement.

• Uncompromised Continuous Production: Designed for relentless, high-capacity output, significantly reducing downtime and elevating overall operational efficiency.

• Effortless Operation: Bypasses the complex, skill-heavy requirements of traditional milling, allowing your workforce to achieve master-level consistency with minimal training.

• Exceptional Viscosity Handling: Powers through thick, stubborn materials with ease, maintaining a steady flow and uniform dispersion even in the most challenging high-viscosity scenarios.

• Advanced Media Separation: Features a state-of-the-art dynamic separation mechanism that flawlessly extracts the finished product from the grinding beads, preventing blockages and ensuring a pure yield.

• Cost-Effective Scalability: By maximizing throughput and minimizing manual intervention, the equipment dramatically lowers per-unit production costs while maintaining premium quality standards.

Advanced Engineering Dimensions

Every component of this horizontal sand mill is purposefully designed to optimize your processing workflow. From thermal regulation to anti-contamination measures, the equipment integrates sophisticated technologies to meet the rigorous demands of modern manufacturing.

Grinding Fineness & Efficiency

Achieving the perfect particle size is no longer a game of chance. The high-kinetic energy dispersion blades create a vortex of intense collision and shear force, driving the grinding media to break down particles to sub-micron or even nanometer levels. This relentless efficiency translates directly into superior product texture.

• Effortlessly achieves sub-micron to nanometer-grade ultrafine grinding.

• High-velocity collisions drastically reduce processing time per batch.

• Supports massive production volumes while minimizing energy consumption.

Core Materials & Anti-contamination

Purity is paramount, especially when processing sensitive or light-colored slurries. The internal grinding chamber and dispersion discs are fortified with premium, high-wear-resistant materials, ensuring that your product remains entirely free from metallic degradation.

• Customizable internal components including silicon carbide, zirconia ceramics, polyurethane, or hard alloys.

• Exceptional wear resistance extends the lifespan of the core grinding elements.

• Completely prevents metal wear contamination, preserving the pristine color and purity of white slurries and high-grade materials.

Cooling & Temperature Control

High-speed friction inevitably generates heat, which can be detrimental to thermal-sensitive formulations. This machine incorporates a highly responsive thermal management architecture to protect the integrity of your delicate materials.

• Equipped with an expansive, spiral-type water cooling jacket system.

• Rapidly dissipates heat generated during extreme high-speed grinding.

• Maintains an exceptionally low temperature rise, making it the perfect solution for pharmaceutical, cosmetic, and specialty coating applications.

Sealing Technology & Safety

Operational safety and absolute containment are non-negotiable. The mill is fortified with industrial-grade sealing mechanisms that lock in high-viscosity materials, preventing any hazardous or costly leaks onto your production floor.

• Utilizes a heavy-duty double-end mechanical seal for uncompromising leak prevention.

• Features an independent coolant circulation system dedicated to the sealing mechanism.

• Integrated real-time monitoring for temperature and pressure, complete with automatic shutdown protocols to ensure round-the-clock operational safety.

Media Separation & Anti-clogging

A seamless discharge is critical for continuous operations. The equipment's internal separation technology is meticulously engineered to handle dense slurries and micro-sized grinding beads without faltering.

• Incorporates a specialized large-flow dynamic gap separator or precision filter screen.

• Built-in self-cleaning capabilities maintain an unobstructed flow path.

• Guarantees smooth separation of material and media, completely eliminating the risk of clogging even when utilizing 0.2mm micro-beads.

Broad Industry Adaptability

Versatility is at the heart of this equipment's design. It seamlessly transitions across various demanding applications, providing a universal solution for facilities handling diverse product portfolios.

• Eliminates the need for highly specialized manual tuning, delivering consistent excellence across all batches.

• Exhibits profound adaptability to incredibly dense and viscous substances.

• Serves as the backbone for core production lines in inks, automotive paints, agrochemical suspensions, and food processing.

Operation & Maintenance Convenience

Time spent on maintenance is time lost in production. The architectural layout of this mill prioritizes accessibility, ensuring that routine cleanings and changeovers are executed with unprecedented speed.

• Optional PLC intelligent control panel enables one-touch start/stop and precise parameter adjustments.

• Ergonomic machine structure allows for rapid and straightforward dismantling of the grinding chamber.

• Drastically reduces downtime associated with deep cleaning, media replacement, and color switching.

working principle

The horizontal sand mill sends pre mixed raw materials into the grinding tank of the main machine. The grinding tank is filled with an appropriate amount of grinding media, such as glass beads, which rotate at high speed through dispersing blades, giving the grinding media enough kinetic energy to collide with the dispersed particles and generate shear force, achieving the dispersing effect. Then, through a special separation device, the dispersed material is separated from the grinding media and discharged. Because it does not require high operational skills like three rollers to achieve uniform and excellent quality, and can be produced continuously in large quantities, it can improve quality and reduce costs, and is also suitable for dispersing high viscosity substances. Therefore, it can be applied to industries such as paint, ink, medicine, food, cosmetics, pesticides, etc.

Application industry

Why Choose Us

Selecting the right manufacturing partner is just as critical as choosing the right equipment. We are dedicated to empowering your production facilities with machinery that stands the test of time, backed by engineering excellence and unwavering support. Our commitment to your success is reflected in every weld, seal, and component we deliver.

• Decades of Engineering Mastery: We specialize deeply in the research, design, and fabrication of advanced mixing and grinding equipment, bringing unparalleled technical authority to your factory floor.

• Tailored Customization: We understand that no two production lines are identical. Our engineering team works closely with you to customize chamber materials, control systems, and cooling capacities to match your exact formulations.

• Stringent Quality Assurance: Every unit undergoes rigorous stress testing before it leaves our facility, ensuring it can withstand the harshest industrial environments and the most demanding production schedules.

• Comprehensive Global Support: From initial consultation and installation guidance to lifelong technical assistance, our dedicated service teams ensure your operations never miss a beat.

FAQ

To assist you in making a highly informed procurement decision, we have compiled answers to the most technical and operational questions regarding our milling equipment. Explore these insights to understand how our technology integrates into your specific workflow.

1. How does the double-end mechanical seal improve the longevity of the equipment?

The double-end mechanical seal provides a robust, impenetrable barrier that completely isolates the grinding chamber from the external environment and internal motor components. By utilizing an independent coolant circulation system, it prevents abrasive high-viscosity materials from breaching the seal faces, thereby drastically reducing wear and tear and extending the overall lifespan of the machine.

2. Can this mill handle highly temperature-sensitive pharmaceutical formulations?

Absolutely. The equipment features an advanced, large-area spiral water cooling jacket that envelops the grinding chamber. This system highly efficiently transfers extreme heat generated by the kinetic friction of the grinding beads, keeping the temperature rise strictly within safe thresholds to preserve the chemical integrity of sensitive pharmaceuticals and cosmetics.

3. What makes the dynamic separation device superior to traditional static screens?

Traditional static screens are highly prone to blinding and clogging, especially when processing thick slurries. Our special dynamic separation device leverages centrifugal force and a self-cleaning gap mechanism to continuously push the grinding media away from the discharge port. This ensures a consistent, high-volume flow of the finished product without the downtime associated with clearing blocked screens.

4. Is it difficult to switch between different colors of paint or ink?

Not at all. The ergonomic, user-centric design of the horizontal chassis allows for rapid disassembly of the grinding chamber. This accessibility means your maintenance team can quickly flush the system, thoroughly clean the internal components, and replace or wash the grinding media, minimizing cross-contamination risks and significantly reducing changeover downtime.

5. Which grinding media sizes are compatible with this specific 20L model?

The 20L model is highly versatile and accommodates a wide range of grinding media, including premium glass and zirconia beads. Thanks to the precision-engineered dynamic gap separator, the mill can safely and effectively utilize ultra-fine beads down to 0.2mm in diameter, allowing you to achieve true nanometer-grade dispersion without the risk of media escaping into the final product.
