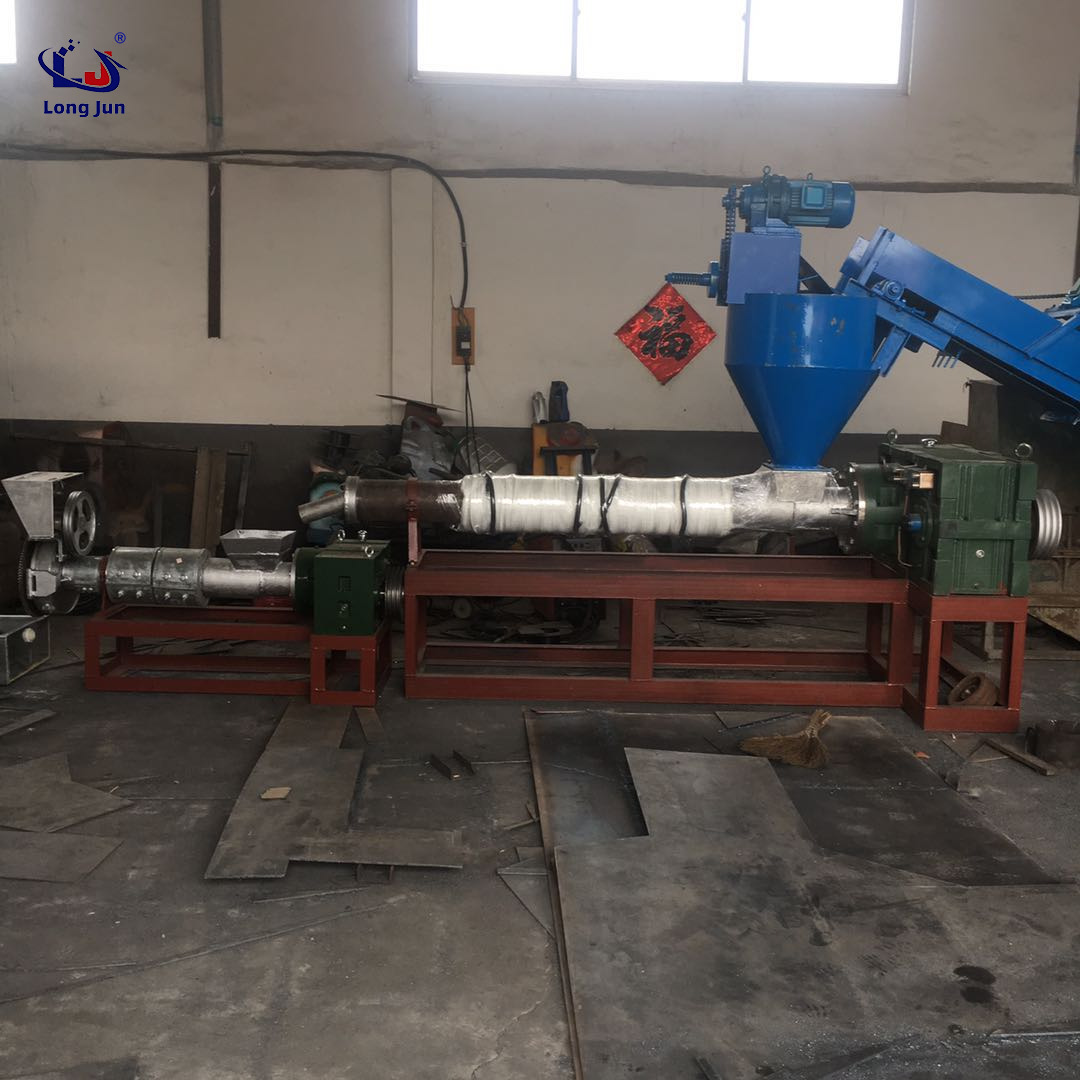

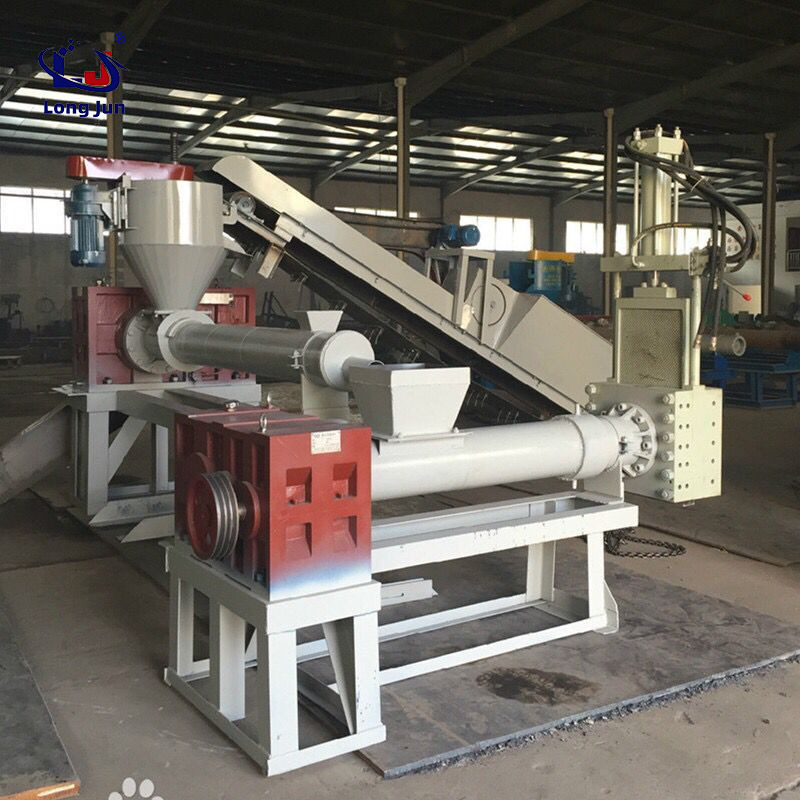

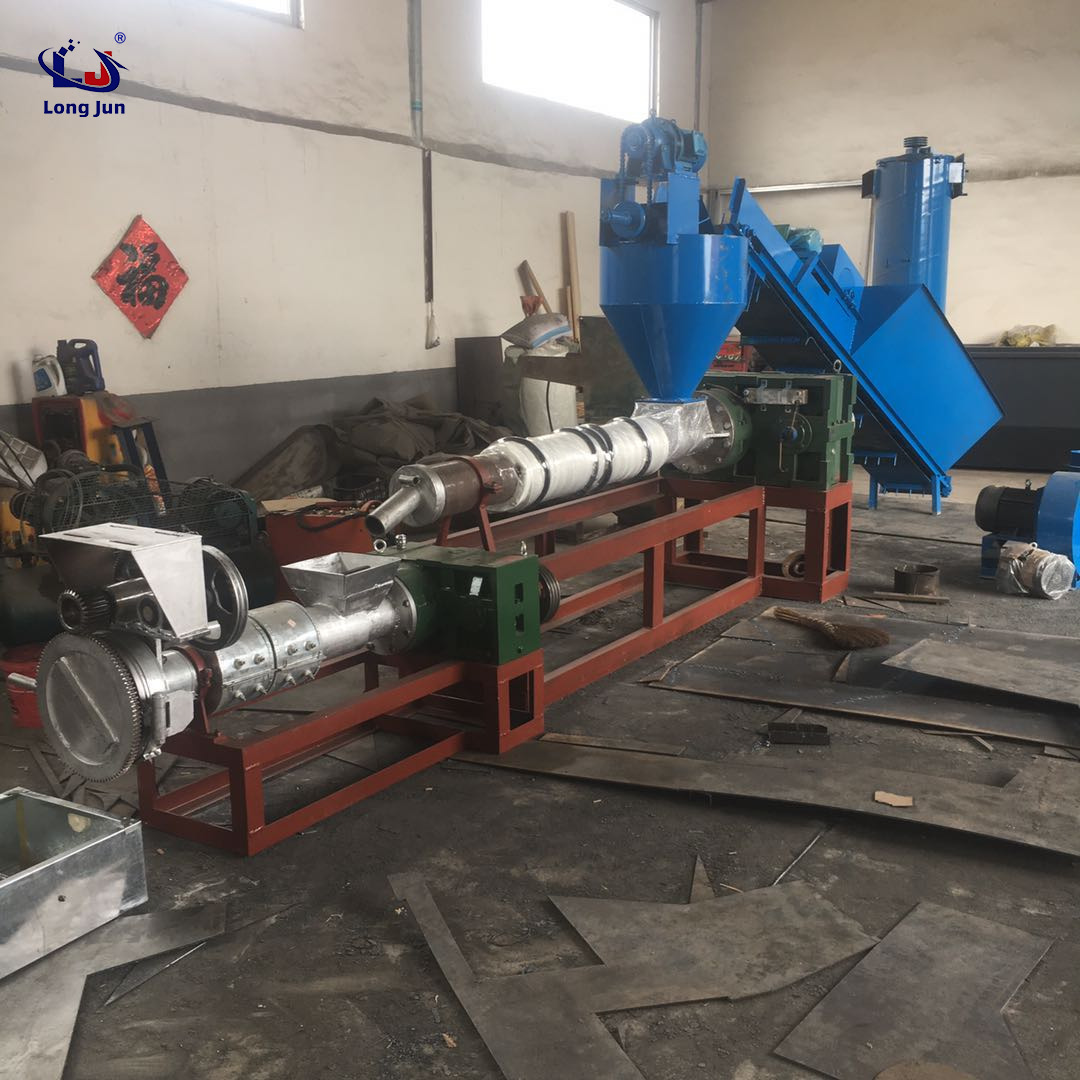

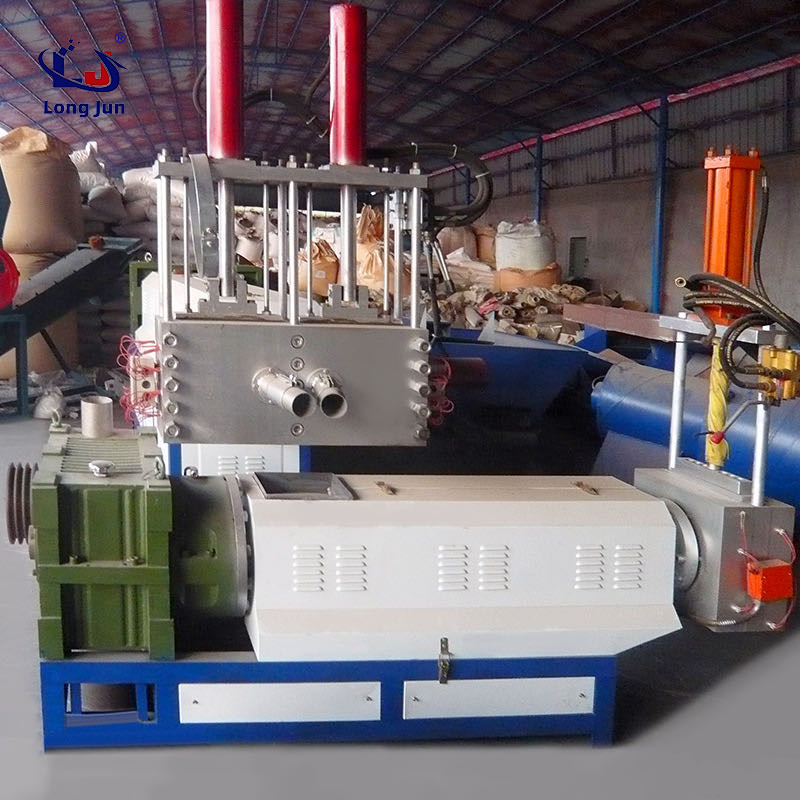

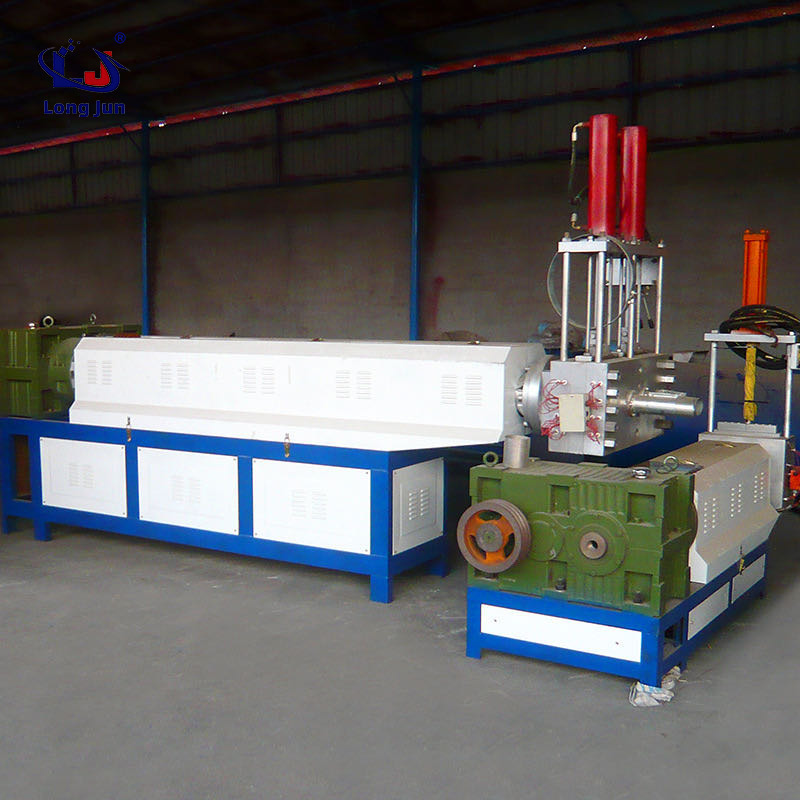

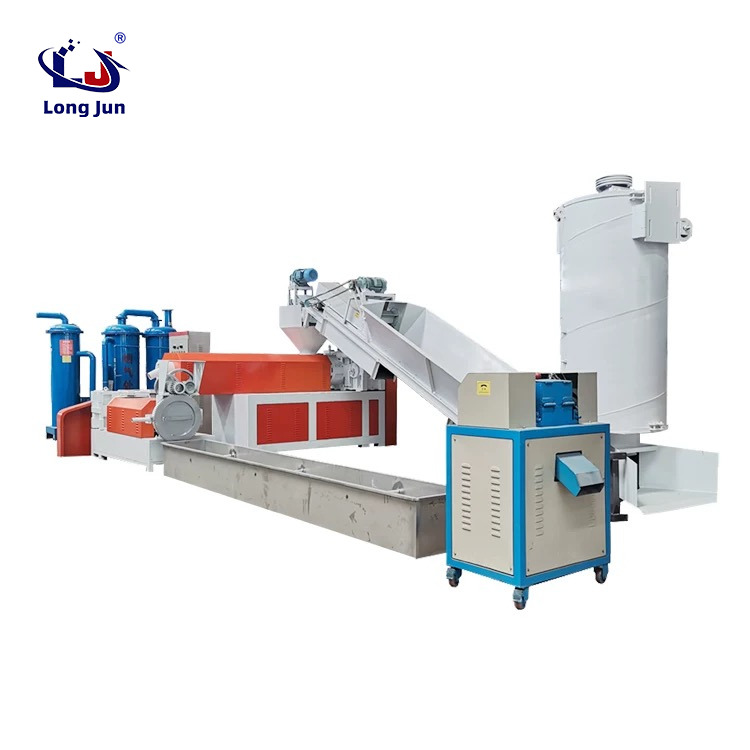

Second hand waste plastic pellet granulator

The waste plastic recycling machine is a specialized equipment used for processing waste plastics. Its core component is the extruder, which consists of an extrusion system, a transmission system, and a heating and cooling system. The extrusion system includes a screw, a barrel, a hopper, a machine head, and a mold. The plastic is crushed, melted, and plasticized by the rotation of the screw. The length of the barrel is usually 15-30 times the diameter to ensure sufficient plasticization. The transmission system is driven by a motor to rotate the screw, and the heating and cooling device adopts a combination of electric heating and air/water cooling to maintain stable plastic processing temperature.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

In plastic extrusion molding equipment, the plastic extruder is usually referred to as the main machine, while the subsequent equipment that is matched with it, the plastic extrusion molding machine, is called the auxiliary machine. After more than 100 years of development, plastic extruders have evolved from single screw to various models such as twin-screw, multi screw, and even no screw. The plastic extruder (host) can be matched with various plastic molding auxiliary machines such as pipes, films, rods, monofilaments, flat wires, packing belts, extruded nets, plates (sheets), profiles, granulation, cable wrapping, etc., to form various plastic extrusion molding production lines and produce various plastic products. Therefore, plastic extrusion molding machinery is one of the widely used models in the plastic processing industry, both now and in the future.

微信图片_2025-08-10_131717_146

Plastic extruders can be divided into single screw extruders, twin-screw extruders, and multi screw extruders based on the number of screws. At present, single screw extruders are widely used and suitable for extrusion processing of general materials. The twin-screw extruder has the advantages of less heat generated by friction, more uniform material shear, greater screw conveying capacity, stable extrusion volume, longer material retention in the barrel, and uniform mixing.

Laizhou Longjun Machinery Co., Ltd. produces various large, medium and small plastic granulator production lines, PVC plastic granulators, dry film plastic granulators, water ring cutting plastic granulators, polypropylene plastic granulators, film plastic granulators, plastic crushers, plastic cutters, as well as feeding machines, spin dryers, automatic hydraulic molds, new flue gas processors, stainless steel mixing tanks, electromagnetic heating equipment and various peripheral supporting equipment. The plastic pelletizer production line, which has been developed for many years, is suitable for more than 10 types of materials, such as waste greenhouse film, woven bags, waste drip irrigation belts, mineral water bottles, etc. The pelletizing production line realizes fully automatic integrated operation of waste plastic sorting, crushing, drying, pelletizing, and bagging, which greatly saves labor costs. The products are exported to Thailand, Vietnam, Japan, Russia, Georgia, Senegal, Southeast Asia, Africa, Europe, America and other regions.
