Views: 0 Author: Site Editor Publish Time: 2026-01-19 Origin: Site

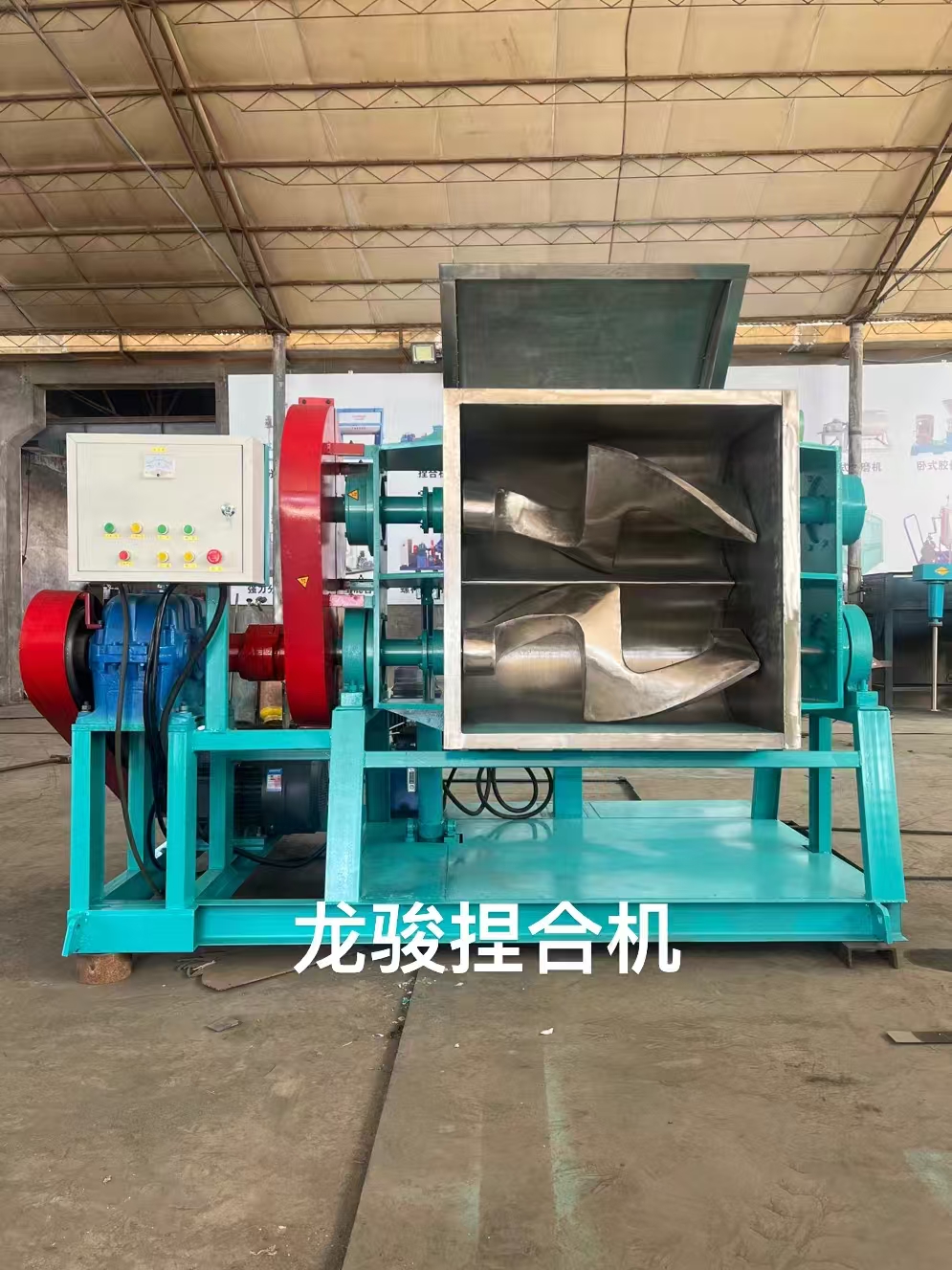

The dual arm flipping kneading machine is actually a type of dual arm kneading machine with hydraulic flipping cylinder function, specifically designed for efficiently mixing high viscosity materials such as rubber, plastic, food dough, etc. Its core feature is the pair of Z-shaped blades and a cylinder body that can be flipped, making discharge particularly convenient.
Core structure and working principle
Double arm kneading structure: A pair of Z-shaped blades rotating in opposite directions, which achieve uniform mixing of materials through shearing, stretching, and squeezing.
Flip cylinder design: After mixing is completed, the hydraulic system drives the cylinder to flip, achieving fast and thorough discharge and avoiding residue.
1、 Key points for core selection
Material characteristics: High viscosity, elasticity or thermosetting materials (such as rubber, plastic, silicone rubber, sealant, chewing gum, ointment) are its strengths.
Capacity and efficiency: Scenarios that require fast, thorough discharge and high automation (such as large-scale continuous production).
Process requirements: Whether special conditions such as pressure, vacuum, high or low temperature are required.
2、 Key parameters and configurations
Cylinder capacity and power: matched according to batch size and material viscosity.
Blade form: Tangent (high heat transfer efficiency) or partially overlapping (self-cleaning, anti sticking).
Speed ratio: usually about 1.9:1, to eliminate material stagnation zone.
Discharge method: Hydraulic tilting cylinder is the core advantage to ensure no residue.
Control system: PLC control can accurately adjust temperature, time, speed, and viscosity.
3、 Applicable industries
*Rubber and plastic: mixing, plasticizing, and defoaming.
*Food industry: dough, chocolate, chewing gum mixture.
*Chemical and pharmaceutical industries: production of silicone rubber, sealants, and ointments.
*Other fields: batteries, ink, pigments, pulp, etc.
