What are the structural components of a horizontal screw belt mixer?

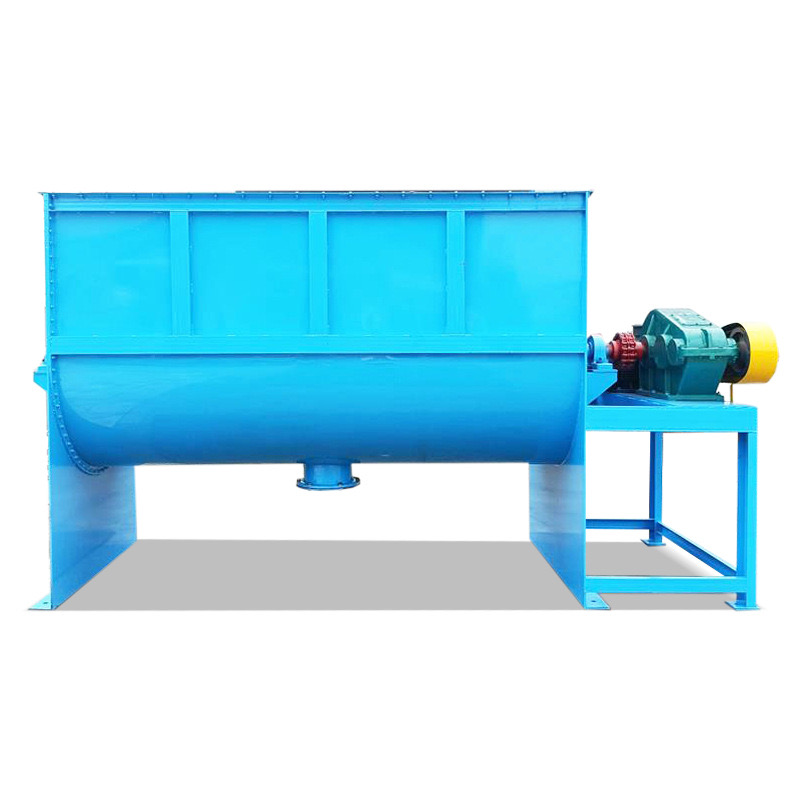

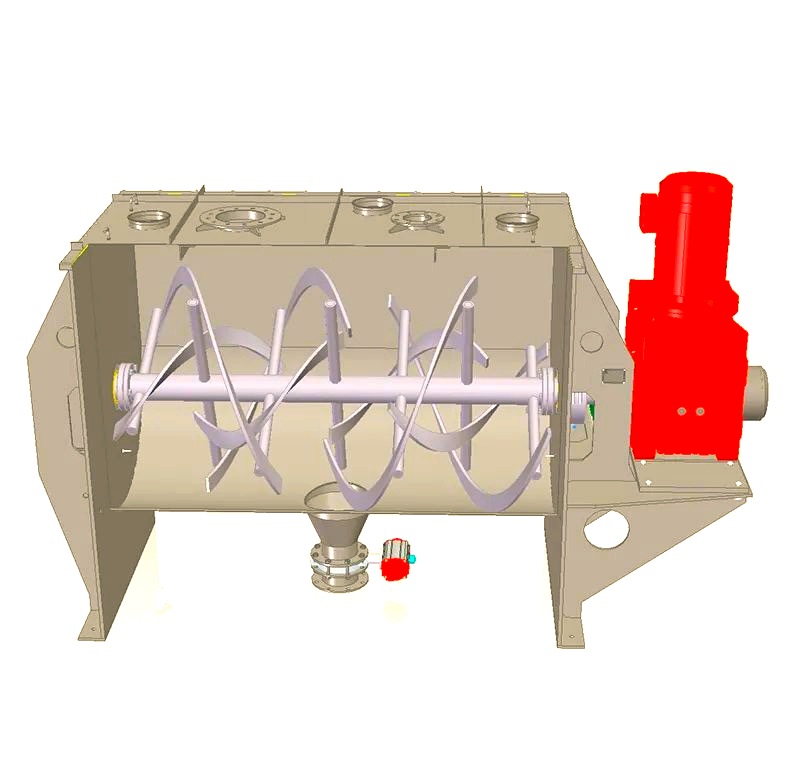

The horizontal screw belt mixer consists of a U-shaped barrel, a frame, a transmission motor, a mixing blade shaft, a heating device, a dehumidification device, and an electrical control box; This model is available in two types for customers to choose from: unheated drying and heated drying; The material in contact with the material is made of stainless steel 304 and 316L to ensure the purity and quality of the product. Widely used in the mixing of solids (i.e. powder to powder) and slurries (i.e. powder to gel solution) in various fields such as pharmaceuticals, animal medicine, food, chemicals, biology, animal husbandry, ceramics, refractory materials, plastics, and compound fertilizers, and particularly suitable for mixing viscous materials.

Exterior part:

Machine cover - According to user requirements and process conditions, the cover can be designed as a flat cover, an arched cover, a single piece cover opening method, or several pieces of cover opening. Manually or pneumatically open and cover various pipe openings as needed. U-shaped or cylindrical material troughs are available for selection.

Drive section:

The motor can be a regular motor, explosion-proof motor, dual speed motor, or variable frequency motor. The connection methods include direct connection between the motor, reducer, and screw mixing mechanism, chain or belt transmission, or cycloidal pinwheel connection.

Menu options for the ribbon mixer

Scraper device - Scrapers are installed at the end of the barrel and on the outer screw to reduce mixing dead zones.

◆ Interlayer - The interlayer can be heated by thermal oil, hot water, or steam, and the user must provide the medium, pressure, and temperature parameters.

Vacuum operation - The equipment can be designed for vacuum operation or vacuum suction.

◆ Load start protection device - hydraulic coupling.

◆ Electric control box - usually not equipped with an electric control box, but equipped when needed by the user.

Speed: Single speed, dual speed, variable frequency speed regulation or stepless speed regulation can be selected.

Material: Carbon steel, 304SUS, 316L stainless steel available for selection.
