PE PP PC EVA Plastic Recycling Machine Used PET Granulator Granulator Granulator Particle Manufacturing Machine

PE PP PC EVA Plastic Recycling Machine Used PET Granulator Granulator Granulator Particle Manufacturing Machine

The PE PP plastic films bags recycling machine is designed for efficient recycling of waste plastic films and bags, turning them into clean flakes and pellets. It features customizable models with screw diameters ranging from 125mm to 180mm and outputs from 100kg h to 300kg h. The machine removes impurities like sand and oil, ensuring high-quality recycled material that can be used in agriculture, construction, and daily life, promoting environmental sustainability.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Details

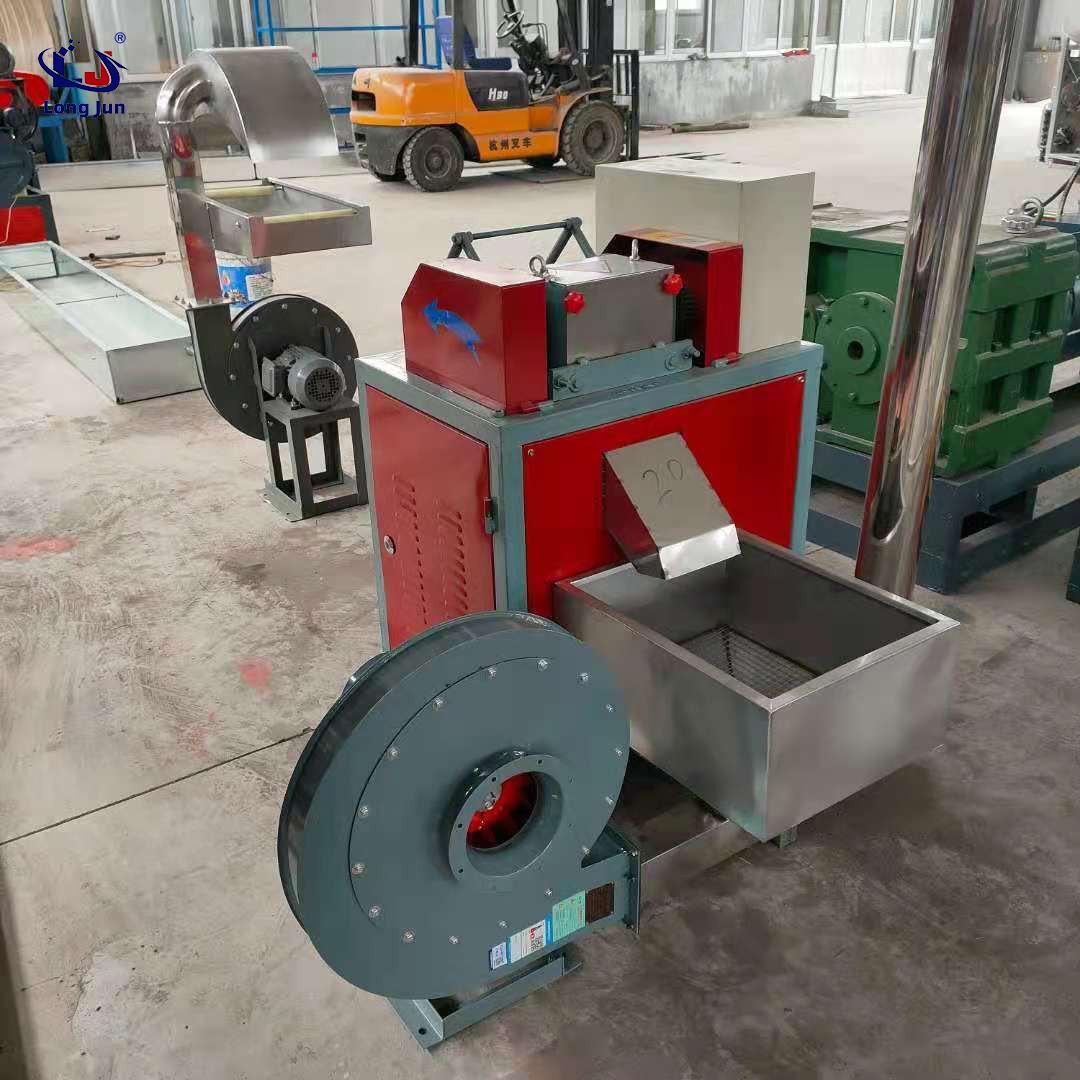

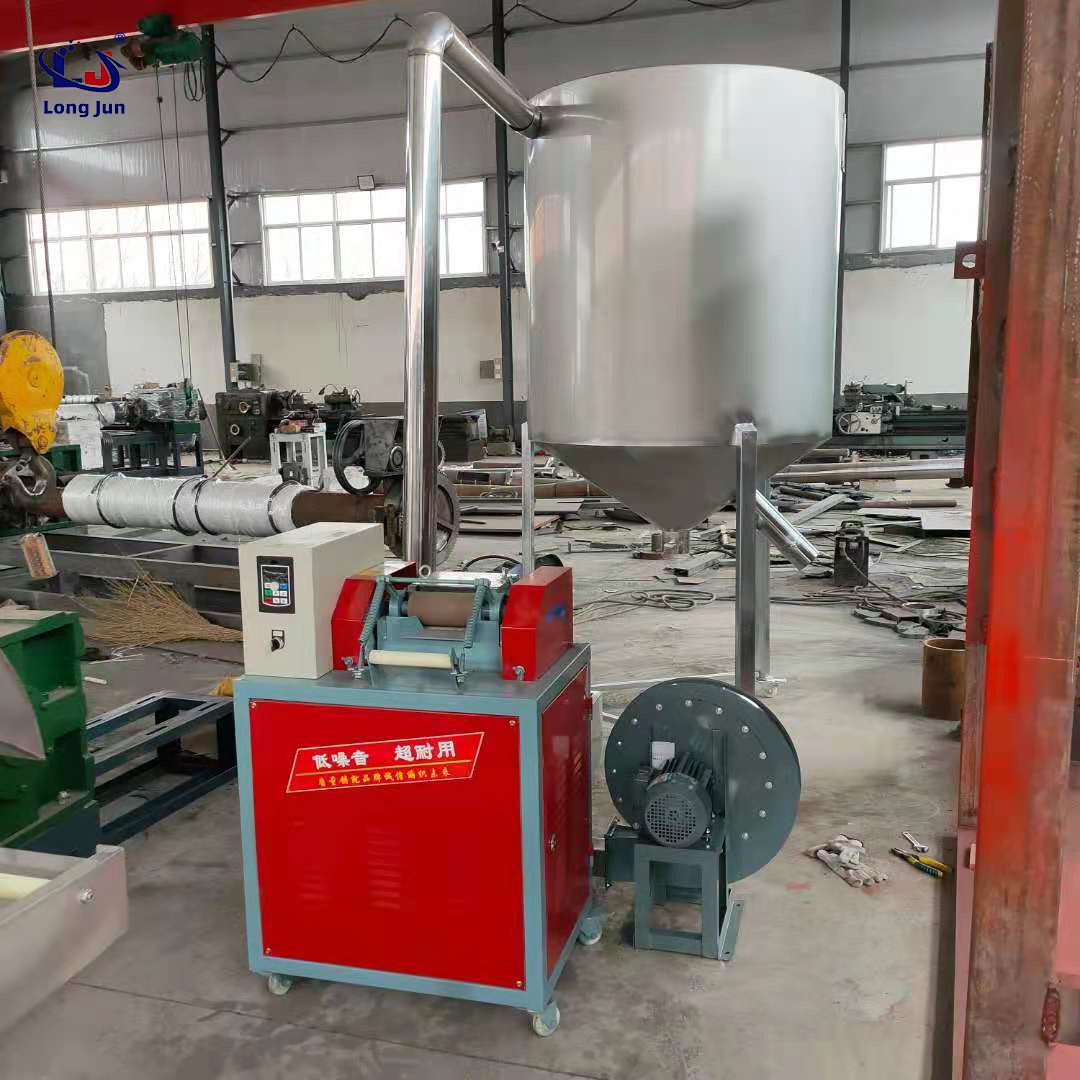

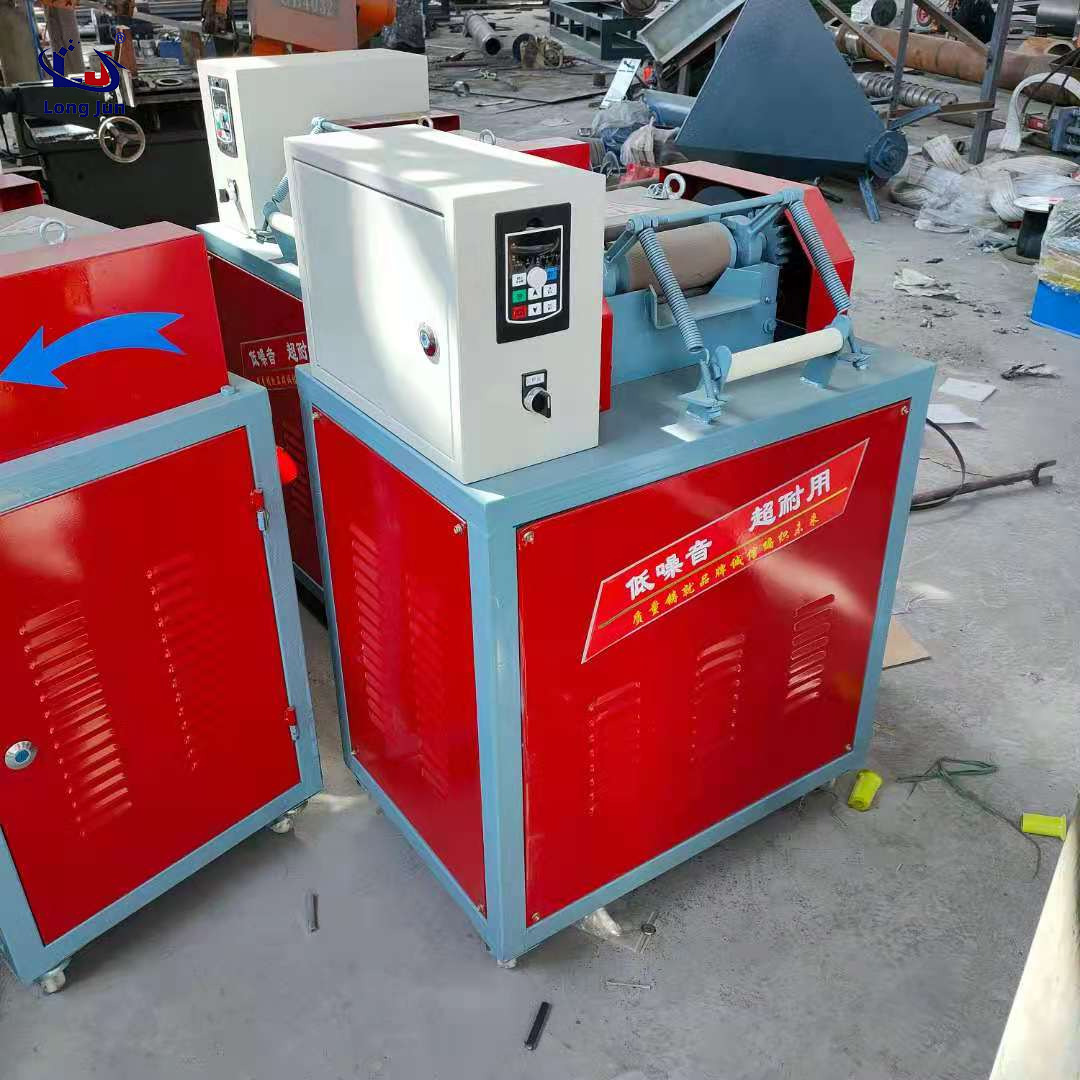

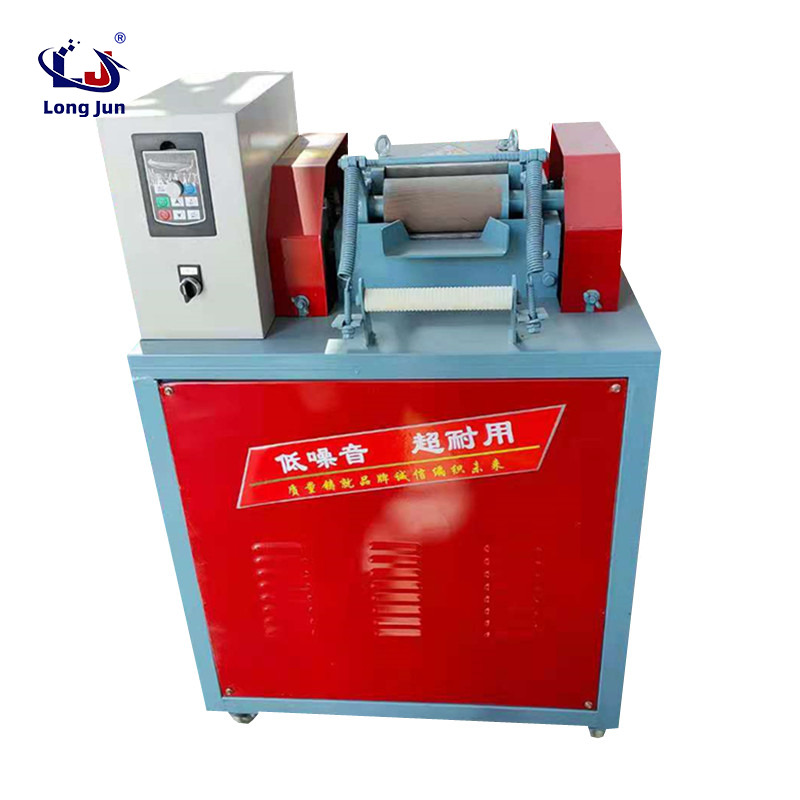

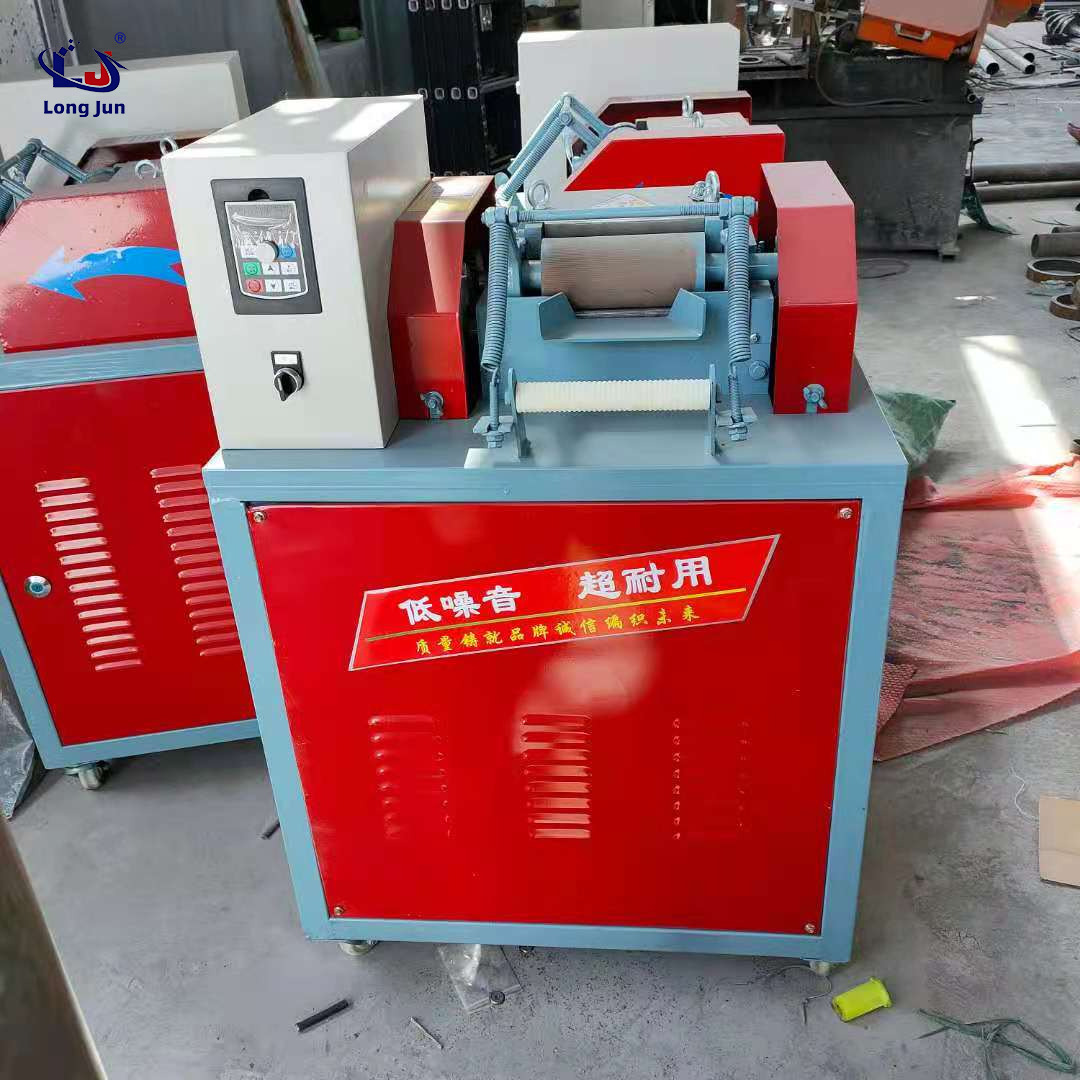

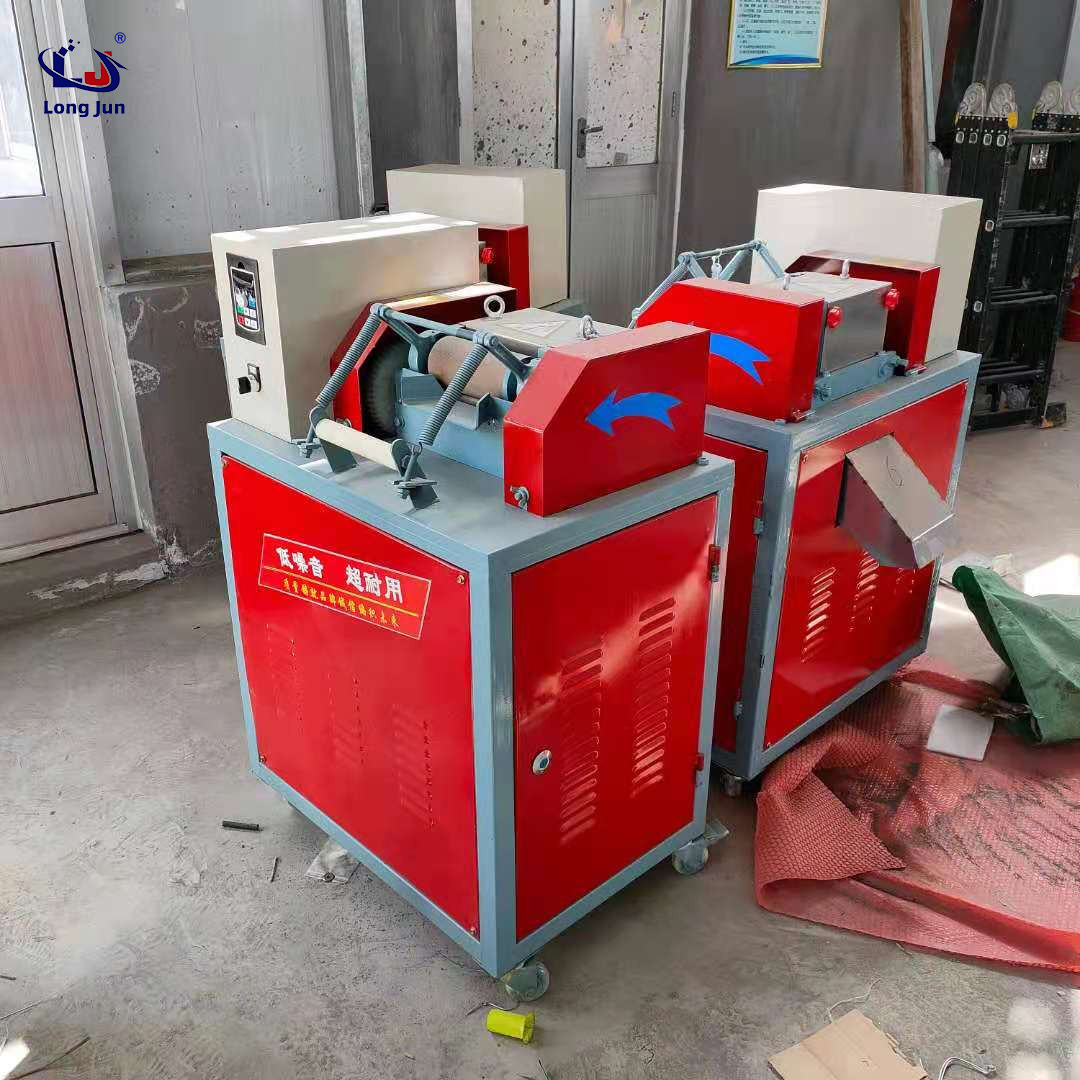

The plastic grain cutting machine is composed of the base, the left and right wall panels, the motor, the transmission device, the press roller, the hob (cutting knife), the oil throwing ring (cutting knife), the screen bucket and other parts. The left and right wall panels are placed in the upper transmission device of the base, the pressure roller, hob, and knife are installed on the wall panel, and the motor and screen bucket are installed in the base.

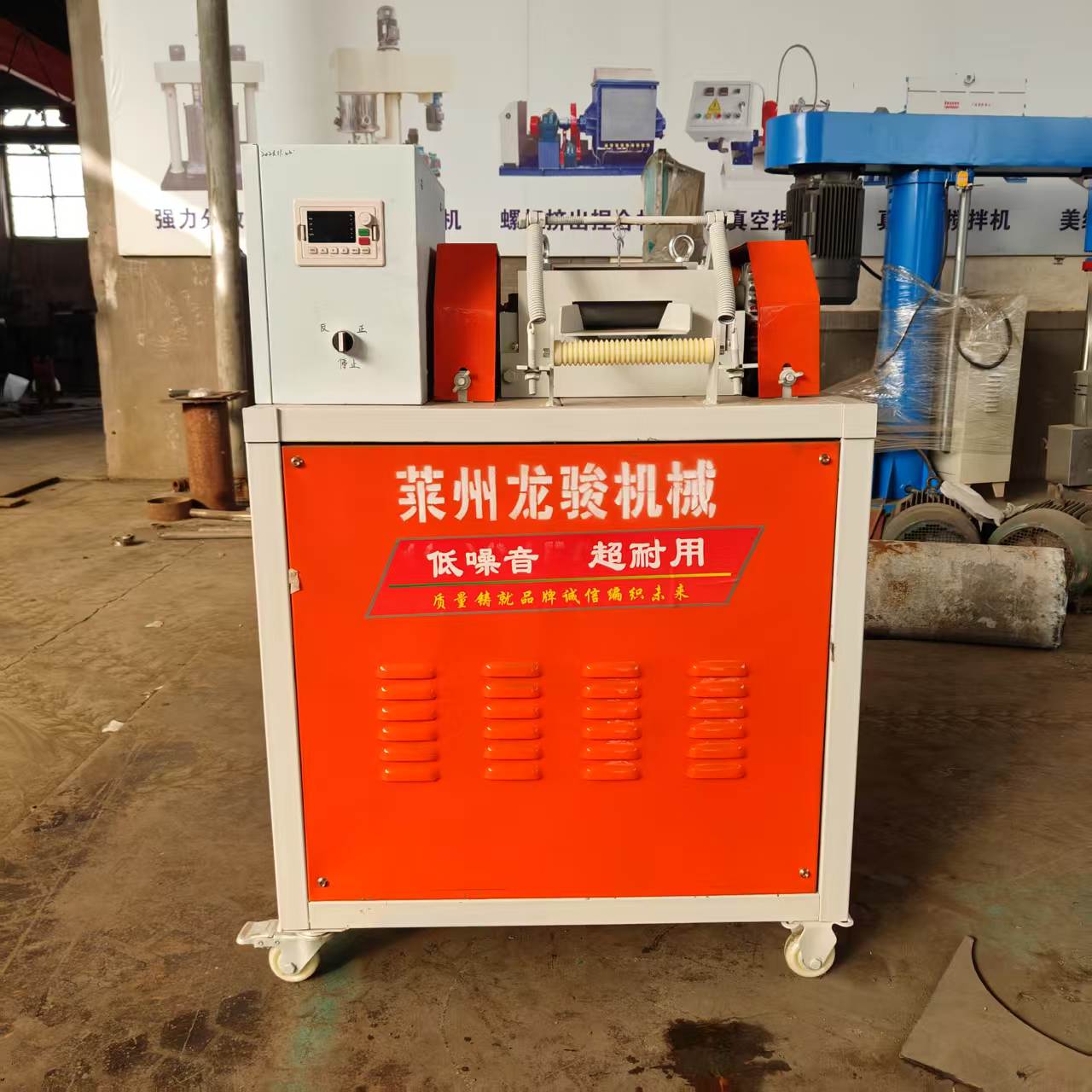

Transmission device: composed of pulley and a series of gears. It transfers the rotation of the motor to the press roller, hob,oil throwing ring and sieve bucket to complete various actions. 切粒机27

The plastic grain cutting machine is composed of the base, the left and right wall panels, the motor, the transmission device, the press roller, the hob (cutting knife), the oil throwing ring (cutting knife), the screen bucket and other parts. The left and right wall panels are placed in the upper transmission device of the base, the pressure roller, hob, and knife are installed on the wall panel, and the motor and screen bucket are installed in the base.
Transmission device: composed of pulley and a series of gears. It transfers the rotation of the motor to the press roller, hob,oil throwing ring and sieve bucket to complete various actions.

PRODUCT SPECIFICATIONS

Model	LJ-180	LJ-200	LJ-220	LJ-240
Boundary dimension(mm)	8007001100	8007001200	89077001250	8508501320
Weight(kg)	130kg	200kg	170kg	250kg
Power（kw)	3kw	3kw	5.5kw	5.5kw
Voltage(v)	380v	380v	380v	380v
Width of hob(mm)	180mm	200mm	220mm	240mm
Number of hob teeth(qty)	18	18	20	26
Cut out the grain length(mm)	3mm	3mm	3mm	3mm
Maximum capacity(kg）	300kg	300kg	350kg	500kg
